HDPE Jerrycan

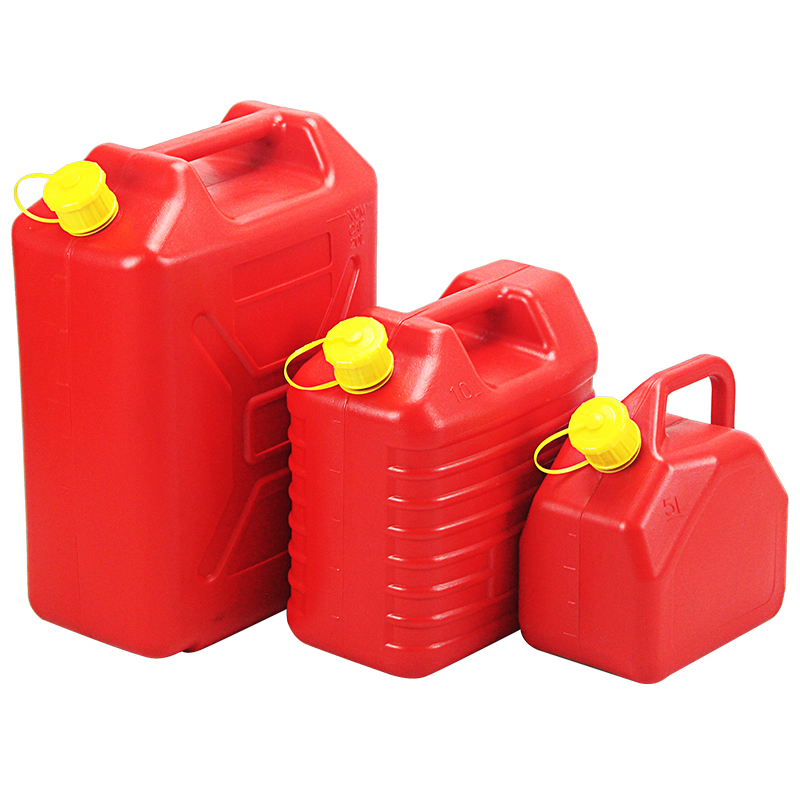

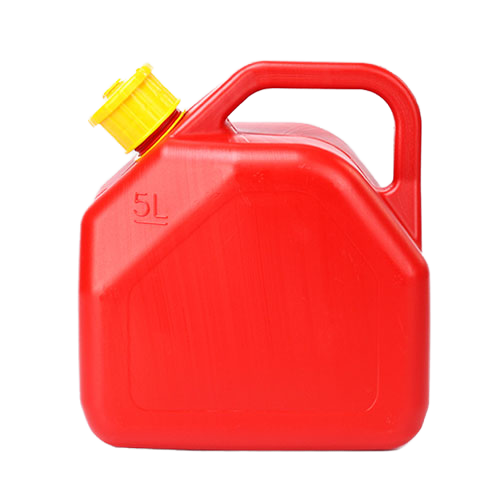

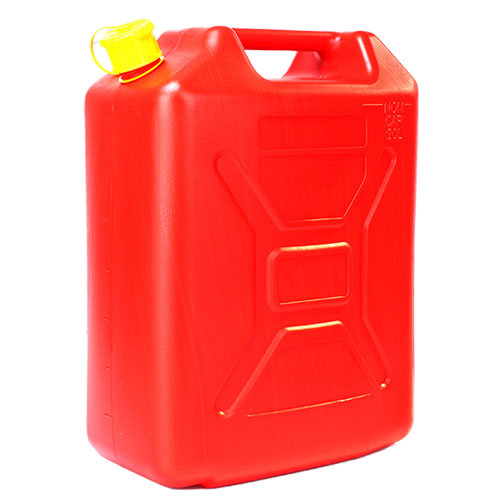

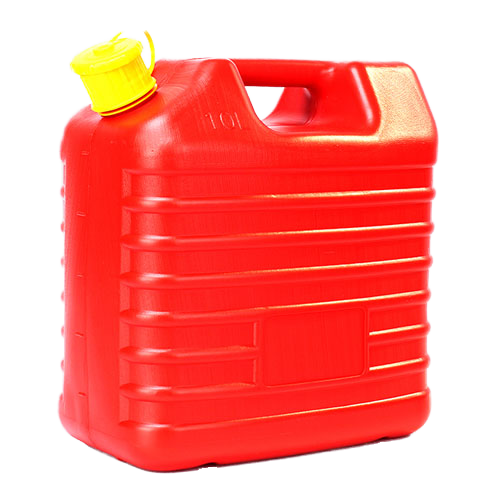

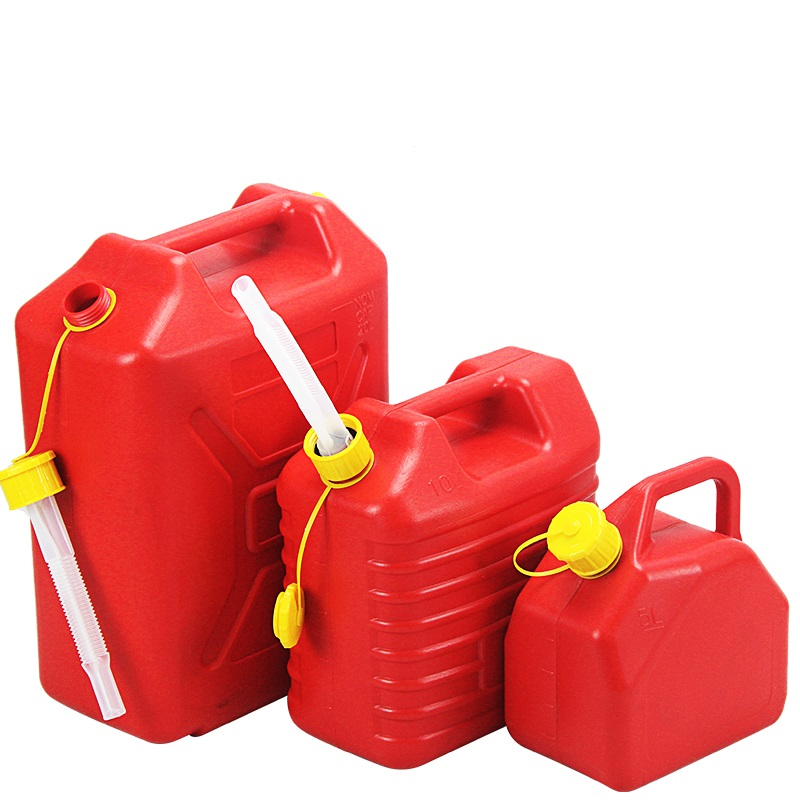

HDPE Plastic Jerry Cans 5L/10L/20L | BlowMolded Fuel Containers | AntiStatic & UVResistant
Lightweight yet durable plastic fuel cans made from 3mm HDPE. Available in 5L (240×155×250mm), 10L(290×185×320mm), and 20L(330×200×440mm). Exportready 5ply cartons with moistureproof packaging. Ideal for emergency fuel storage, agricultural use, and marine environments.
Technical Specifications
Parameter | 5L | 10L | 20L |
Capacity | 5L ±2% | 10L ±2% | 20L ±2% |
Material Thickness | HDPE 3mm | HDPE 3mm | HDPE 3mm |
Overall dimension | 240×155×250mm | 290×185×320mm | 330×200×440mm |
Net weight | 0.5kg | 0.86kg | 1.5kg |
Dropping test height | 1.2m | ||
Hydraulic test pressure | 190Kpa | ||
Leakproofness test pressure | 20Kpa | ||
Packaging | 12 units/carton (8kg gross) | 6 units/carton (8kg gross) | 4 units/carton (8kg gross) |
HDPE Plastic Jerry Cans 5L/10L/20L | BlowMolded Fuel Containers | AntiStatic & UVResistant
Lightweight yet durable plastic fuel cans made from 3mm HDPE. Available in 5L (240×155×250mm), 10L lowprofile (290×185×320mm), and 20L (330×200×440mm). Exportready 5ply cartons with moistureproof packaging. Ideal for emergency fuel storage, agricultural use, and marine environments.
Highlights
UltraSafe Design
Antistatic HDPE material prevents sparking (resistivity ≤10⁶ Ω).
UVstabilized for outdoor use (tested 2,000 hours under ASTM G154).
LeakProof Performance
Threaded vented cap with silicone seal (IP67 waterproof rating).
Reinforced handle ergonomics (load capacity: 2× rated volume).
Logistics Optimized
Nestable design reduces 40% storage space versus metal cans.
Preattached multilingual safety labels (EN/ES/FR).
Structural Advantages
BlowMolded Seamless Body: No weak joints, 50% higher impact resistance than injectionmolded cans.
Color Coding: Available in red (gasoline), yellow (diesel), and blue (kerosene).
Stacking Ribs: Interlocking design stabilizes vertical stacking (max. 4 layers).
Target Applications
Emergency Preparedness:
FEMArecommended 72hour household fuel reserves.
NGO disaster relief supply kits.
Agriculture & Marine:
Tractor diesel storage with dustproof caps.
Boat auxiliary fuel tanks (USCGcompliant).
Commercial Use:
Lubricant/oil packaging for auto workshops.
Chemical transport (compatible with acids/alkalis ≤pH 10).
Quality Assurance
Production Tests:
1. Drop test (1.2m onto concrete, 3 cycles).
2. Hydrostatic pressure test (190Kpa).
3. Permeation test (20Kpa).
