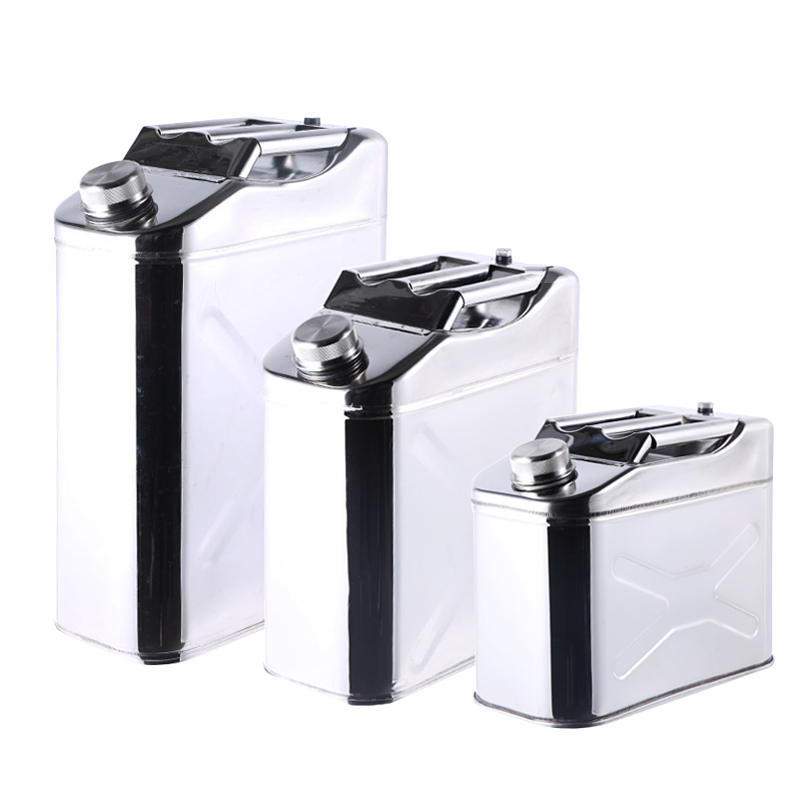

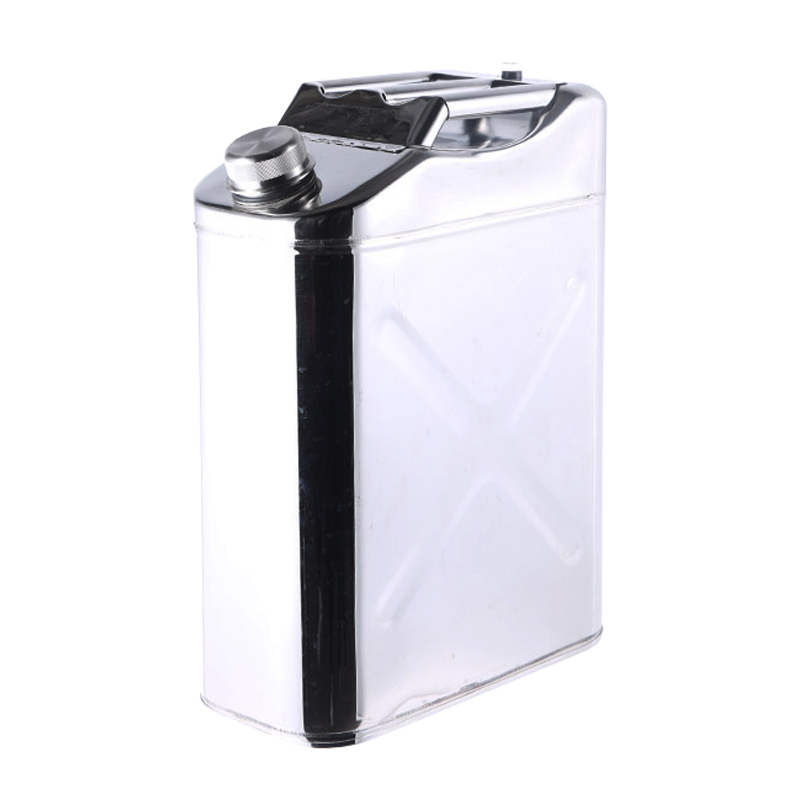

304 Stainless Steel Vertical type Jerrycan
304 Stainless Steel Jerry Cans 5L-20L | FoodGrade & Industrial Fuel Containers | OEM Factory Direct
Premium vertical stainless steel fuel cans with TIG welding and mirror polish. Choose 0.8mm/1.0mm thickness for food, chemical, or fuel storage. Exportready packaging with 10+ years manufacturer expertise. Custom branding & bulk discounts available.
Technical Specifications
Parameter | 5L | 10L | 15L | 20L | ||
Material Thickness | 0.8mm | 0.8mm | 1.0mm | 0.8mm | 0.8mm | 1.0mm |
Overall dimension | 340×170×180mm | 340×170×180mm | 340×170×370mm | 340×170×460mm | ||
Net weight | 1.5kg | 2.3kg | 2.7kg | 2.8kg | 3.3kg | 3.9kg |
Dropping test height | 1.2m | |||||
Hydraulic test pressure | 190Kpa | |||||
Leakproofness test pressure | 20Kpa | |||||
Carton Size | 10 | 8 | 8 | 6 | ||
Packaging | 17kg | 20.5kg | 24kg | 20.5kg | 22kg | 25.5kg |
Factory-to-Global Supply
Monthly Capacity: 50,000+ units with 15day lead time
Certifications: ISO 9001, CE，UN
Dual-Thickness Options
Standard (0.8mm): Lightweight yet durable for general use
Heavy-Duty (1.0mm): 25% stronger for highpressure/chemical applications
Zero-Corrosion Guarantee
Electropolished 304 stainless steel
Passivated surface resists saltwater/acid corrosion
Smart Logistics
5ply crashproof cartons with multilingual labels
17+ Years Stainless Steel Expertise
InHouse Production: Laser cutting → CNC bending → Robotic TIG welding → Electropolishing
Quality Control: 100% helium leak test + Xray weld inspection
Customization: Logo engraving, port configurations, capacity markings
Why Our Jerry Cans Win Orders?
For Food/Beverage Buyers
CIP/SIP cleaning compatible (3A Sanitary Standard)
Ideal for olive oil, wine, syrup storage
For Industrial Buyers
Withstands diesel, biodiesel, hydraulic fluids
Optional grounding lugs for flammable liquids
Trust-Building Proof
Video Showcase: Factory tour
Client Cases: Supplied to EU organic wineries & Middle East oilfield service companies
