20L Army Type Metal Jerry Can
- 20L large-capacity fuel container
- 0.6mm / 0.8mm cold rolled steel body
- Leak-proof sealing design
- Corrosion-resistant coating
- OEM color, logo and packaging available

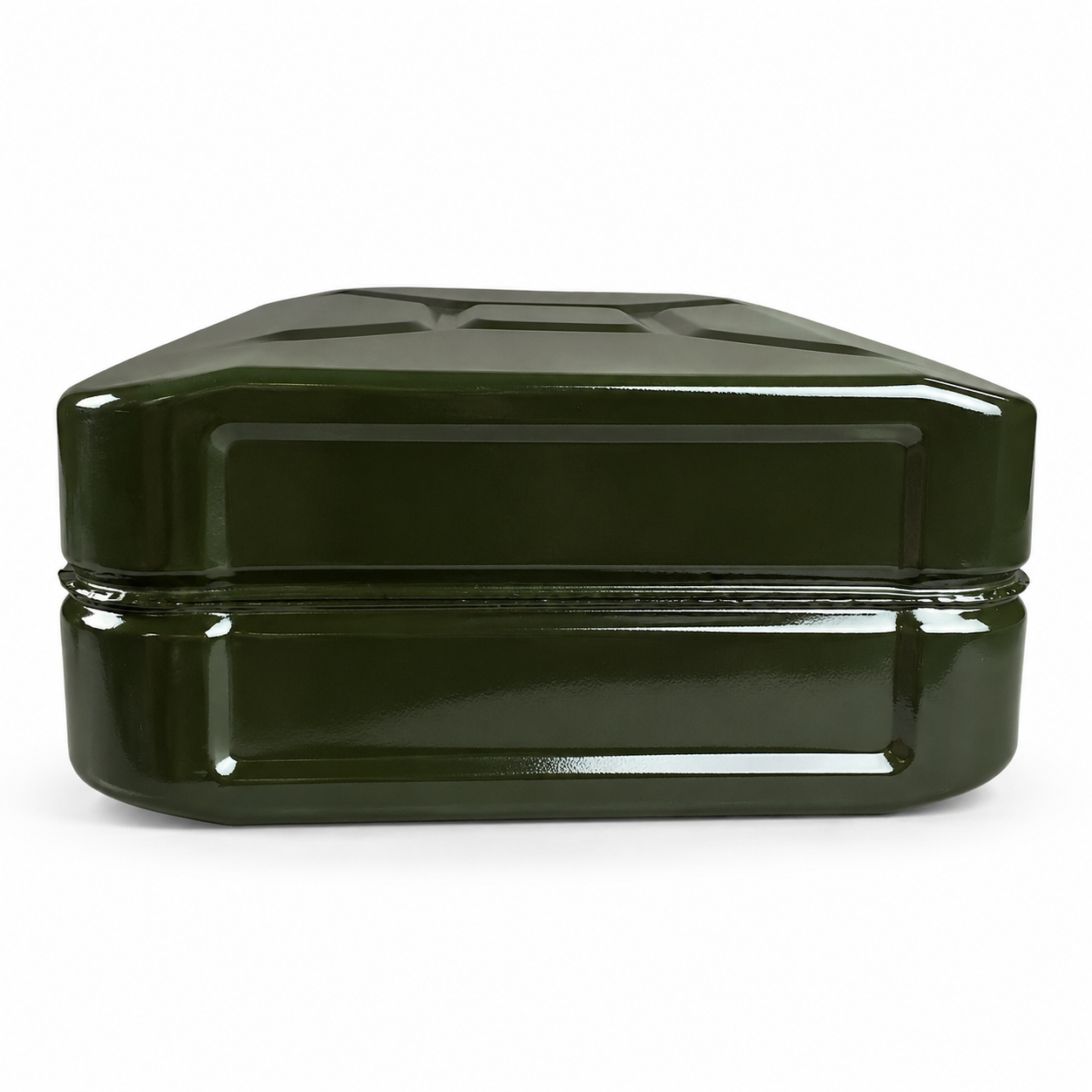

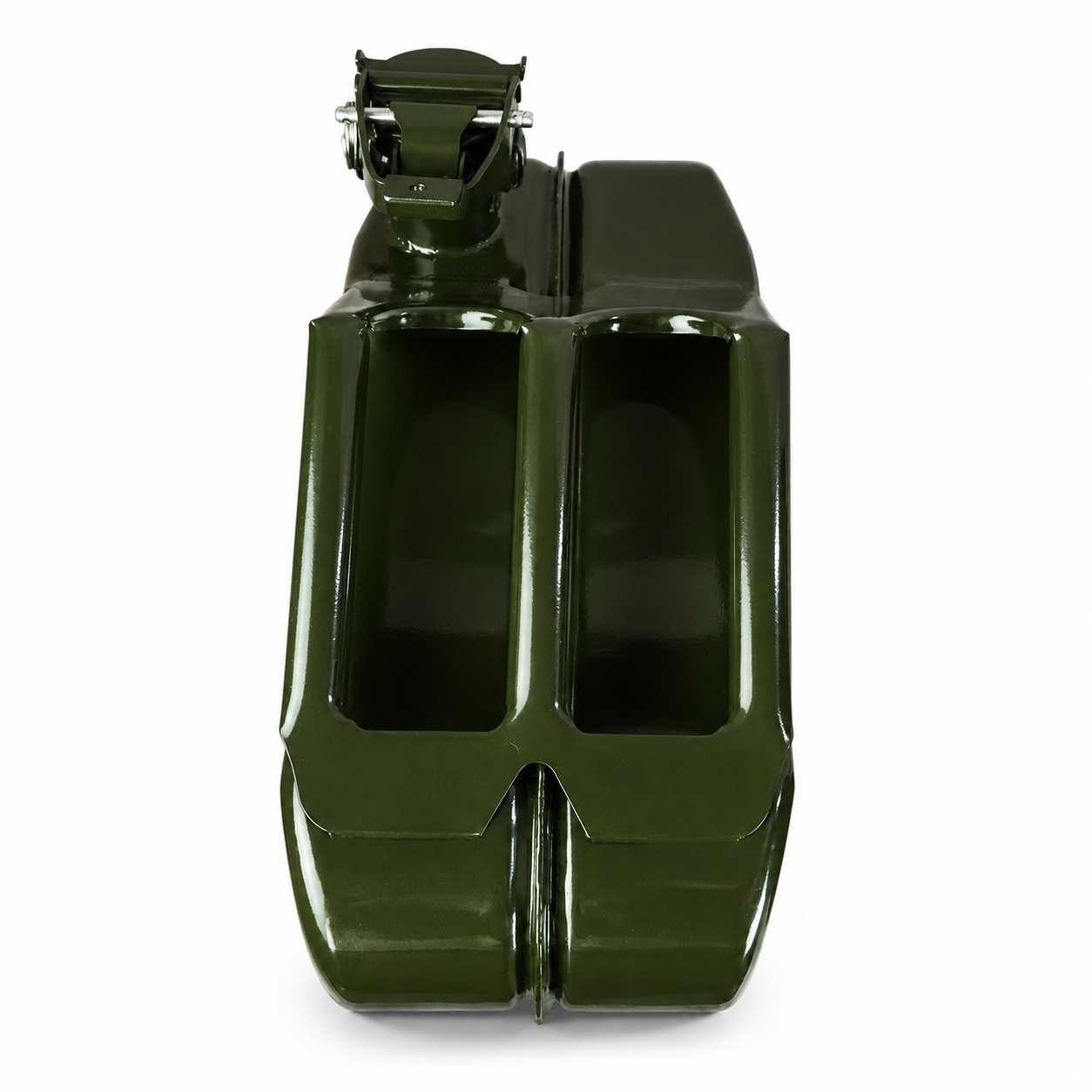

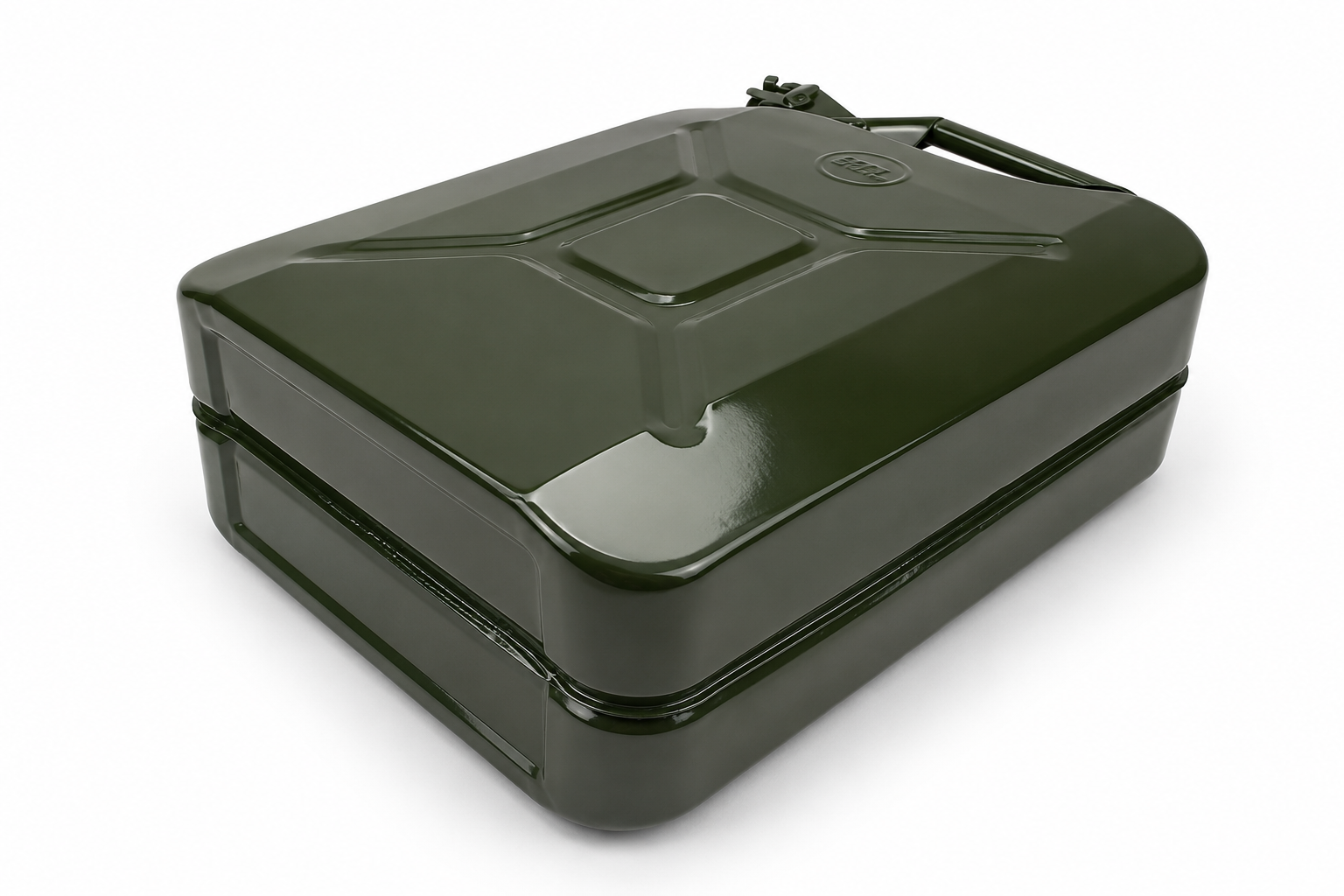

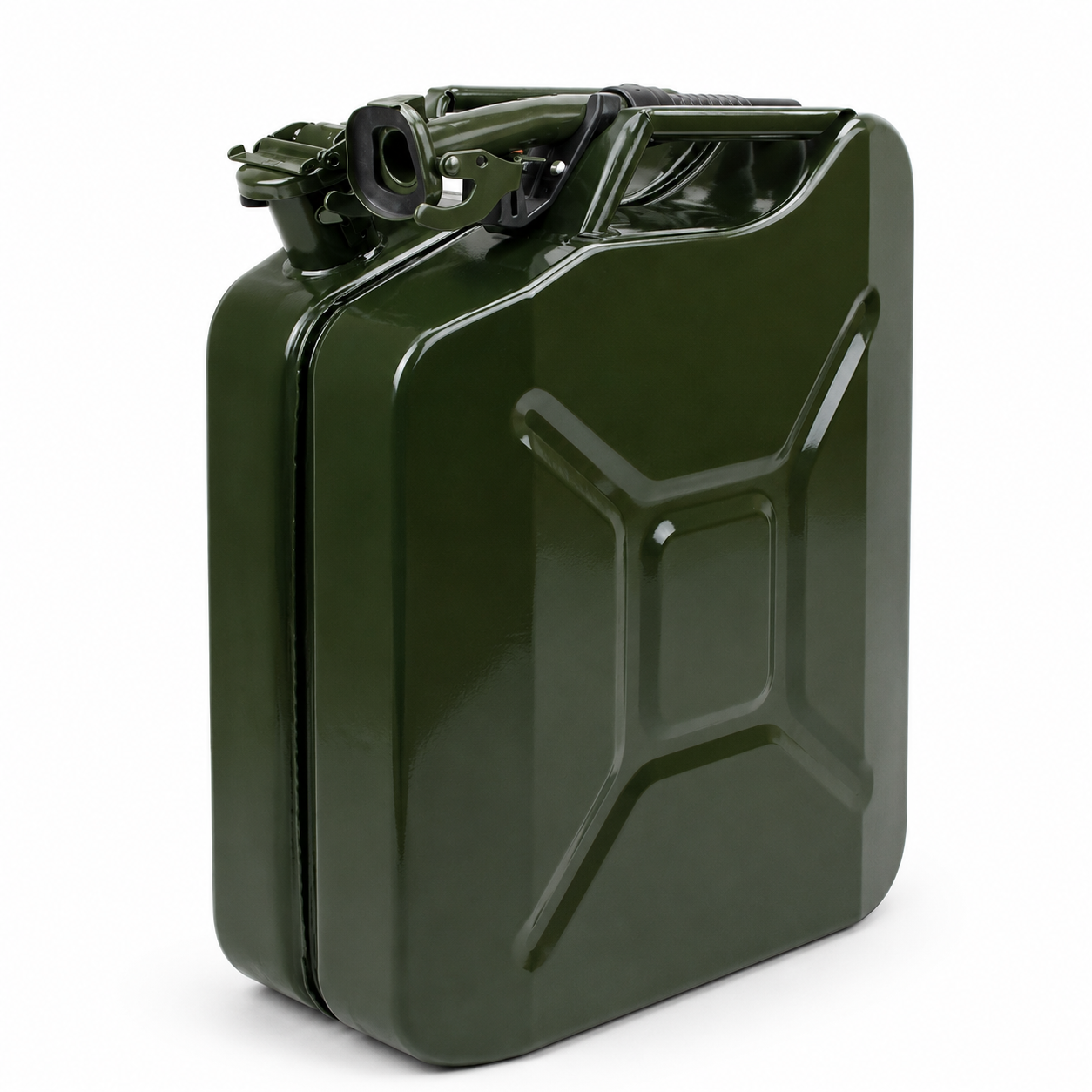

20L Army Type Metal Jerry Can
The 20L Army Type Metal Jerry Can is a durable and reliable fuel container manufactured from high-quality cold rolled steel. Designed for fuel storage, transportation, emergency backup, industrial applications, and off-road use, it provides excellent strength and long service life.
Available in both 0.6mm and 0.8mm steel thickness options, this jerry can combines portability with heavy-duty performance. The leak-proof locking cap and corrosion-resistant coating ensure safe operation in demanding environments.
Key Features
20L large fuel capacity for extended storage and transportation
0.6mm / 0.8mm cold rolled steel body for different strength requirements
Leak-proof sealing design for safe storage and handling
Corrosion-resistant coating with electrophoretic primer and baked paint
OEM customization available for color, logo, label and packaging
Technical Specifications
| Parameter | 0.6mm Version | 0.8mm Version |
|---|---|---|
| Capacity | 20L ±2% | 20L ±2% |
| Material Thickness | 0.6mm Cold Rolled Steel | 0.8mm Cold Rolled Steel |
| Overall Dimension | 360×160×470mm | 360×160×470mm |
| Net Weight | 2.9kg | 3.6kg |
| Coating Process | Electrophoretic epoxy primer + 230°C baked paint | |
| Dropping Test Height | 1.2m | |
| Hydraulic Test Pressure | 190Kpa | |
| Leakproofness Test Pressure | 20Kpa | |
| Operating Temperature | -30°C ~ 120°C | |
| Packaging | 5 units/carton (17kg gross) | 5 units/carton (20kg gross) |
Applications
Suitable for gasoline, diesel, fuel reserve storage, emergency backup, military supply, industrial operations, agricultural equipment, generators, and off-road vehicles.
Customization Service
OEM and ODM services are available, including custom colors, logos, labels, embossing marks, carton design and export packaging solutions.
Why Choose GUYUE
With years of manufacturing experience in metal jerry cans and fuel containers, GUYUE provides stable quality, professional production control and reliable OEM support for distributors and wholesalers worldwide.
