Aluminum Jerry Can
Aluminum Jerry Cans 10L & 20L | Lightweight & CorrosionResistant | TIG Welded Fuel Containers
Aerospacegrade aluminum fuel cans with 1.2mm thick walls. Features TIG welding, coldresistant design (40°C), and antirust anodized coating. Exportready 5ply cartons (8/5 units per box). Perfect for military, arctic expeditions, and marine fuel storage.
Technical Specifications
Parameter | 10L | 20L |
Capacity | 10L ±2% | 20L ±2% |
Material Thickness | Aluminum Alloy 1.2mm | Aluminum Alloy 1.2mm |

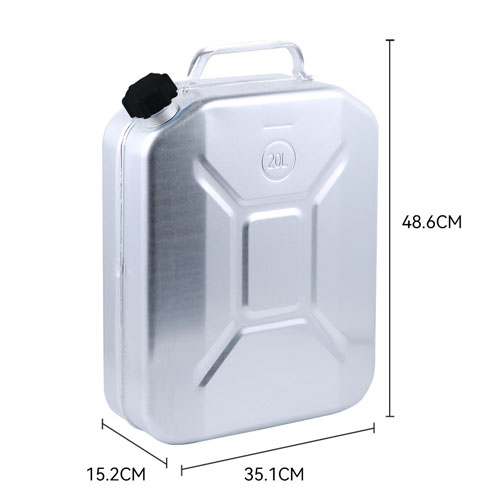

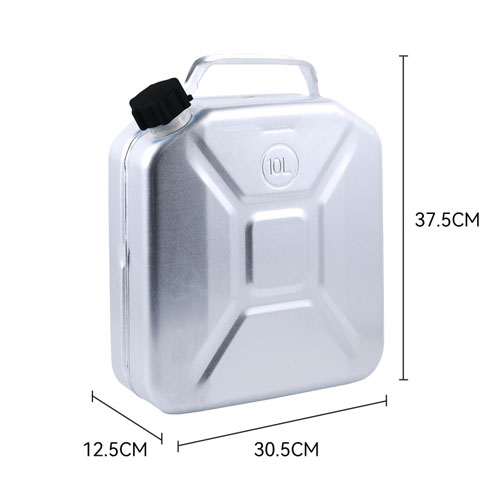

Overall dimension | 305×125×375mm | 351×152×486mm |
Net weight | 1kg | 1.6kg |
Load Capacity | 30kg static | 50kg static |
Packaging | 8 units/carton (10kg gross) | 5 units/carton (10kg gross) |
Highlights
UltraLightweight
10L: 1kg (40% lighter than steel counterparts)
20L: 1.6kg with reinforced handle for heavy loads
Extreme Environment Ready
Operates at 40°C to 120°C (no brittle fracture)
Saltwaterresistant anodized coating (1,000hour ASTM B117 test)
LeakProof Construction
TIGwelded seams (helium leak tested ≤1×10⁻⁶ Pa·m³/s)
Threaded vented cap with EPDM gasket (IP68 waterproof)
ExportOptimized Packaging
10L Carton: 62×53×41cm, 10kg gross
20L Carton: 83×37×47cm, 10kg gross
5ply corrugated boxes with edge guards
Design Advantages
Seamless TIG Welding: Eliminates corrosionprone joints, 30% stronger than spot welding.
Ergonomic Handle: Textured grip with loaddistributing geometry.
NATOCompatible: Fits standard vehicle mounting systems (e.g., Humvee, Land Cruiser).
Industrial:
Aviation fuel handling (FAA AC 150/52304B)
Chemical transport (pH 49 compatible)
Quality Assurance
Production Tests:
1. Cryogenic impact test (50°C)
2. Hydrostatic pressure test (2× capacity)
