304Stainless Steel Vertical Type Jerry can

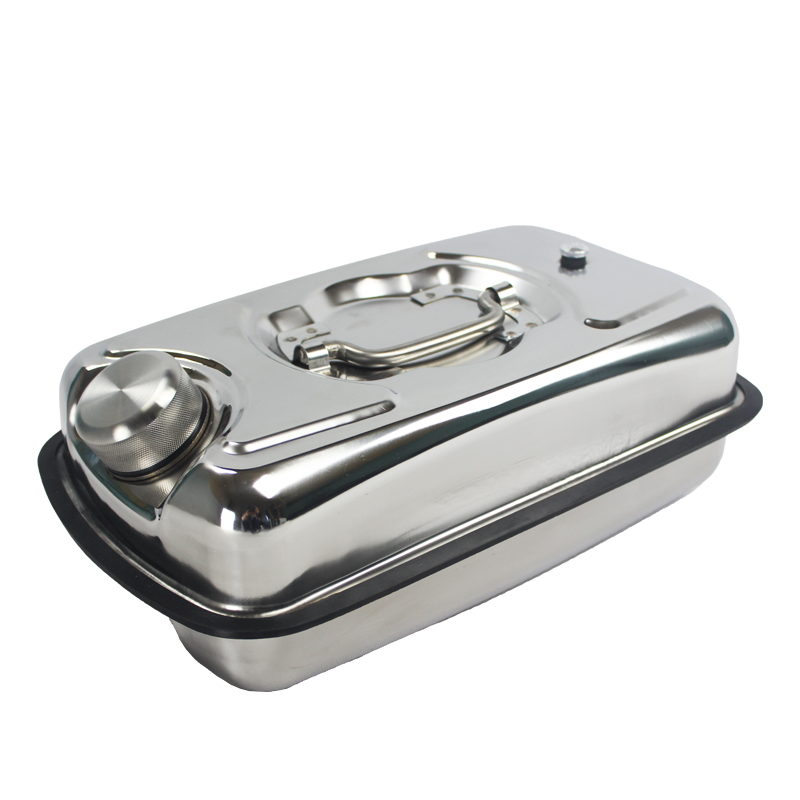

304 Stainless Steel Horizontal Jerry Cans 5L/10L/20L | FoodGrade & RustProof | Mirror Polished Fuel Containers
Industrialgrade horizontal fuel tanks made from 0.8mm 304 stainless steel. Seamless TIG welding with mirror finish. Bulk export packaging (8/6/4 units per 5ply carton). Perfect for foodgrade liquid storage, marine fuel, and medical applications.
Technical Specifications
Parameter | 5L | 10L | 20L |
Capacity | 5L ±2% | 10L ±2% | 20L ±2% |
Material Thickness | 304Stainless steel 0.8mm | ||
Overall dimension | 415×240×125mm | 415×240×225mm | 430×290×260mm |
Net weight | 1.9kg | 2.05kg | 3.36kg |
Dropping test height | 1.2m | ||
Hydraulic test pressure | 190Kpa | ||
Leakproofness test pressure | 20Kpa | ||
Load Capacity | 80kg static | 120kg static | 200kg static |
Packaging | 8 units/carton (17.5kg gross) | 6 units/carton (14.5kg gross) | 4 units/carton (15.5kg gross) |
Highlights
Zero-Corrosion Guarantee
304 stainless steel compliant with FDA 21 CFR 175.300 for food contact.
Passivated surface resists saltwater/chemical corrosion (10,000h lifespan).
Mirror Finish
Electrolytic polishing (Ra ≤0.2μm) prevents bacterial adhesion.
CIP (CleaninPlace) compatible for pharmaceutical/brewing industries.
Heavy-Duty Construction
0.8mm wall thickness with TIG welds.
Static load capacity up to 300kg (20L model).
ExportReady Packaging
5L Carton: 77×49×37cm, 17.5kg gross
10L Carton: 77×49×40cm, 14.5kg gross
20L Carton: 59×51×46cm, 15.5kg gross
5ply corrugated boxes with desiccant packs
Design Advantages
Seamless Welding: TIG process eliminates crevices .

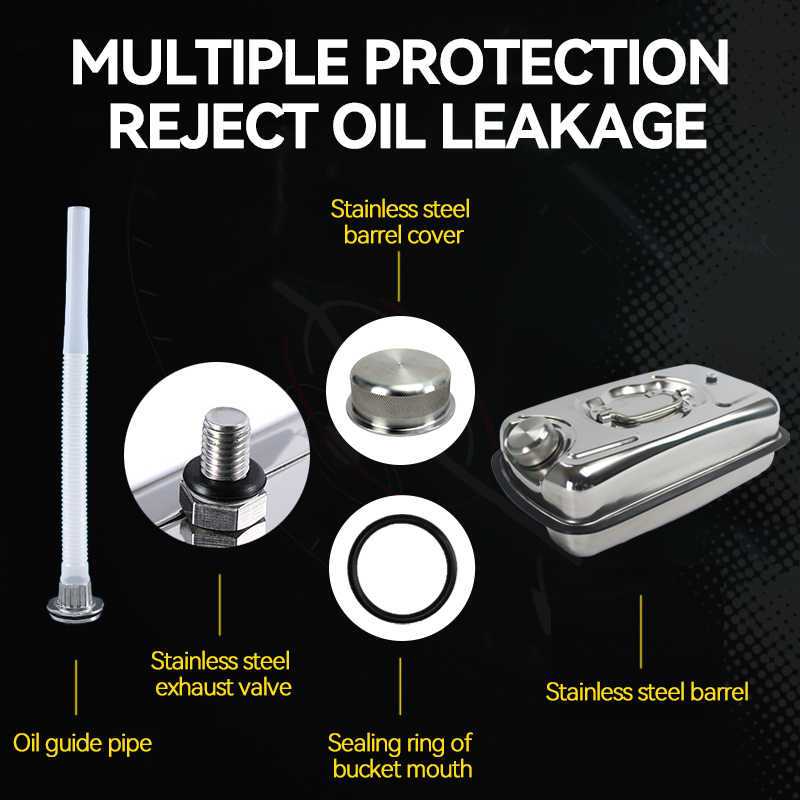

TripleSeal Lid: Silicone gasket + stainless clamp + vented cap.
Food/Beverage:
Edible oil transport.
Winery CIP cleaning fluid storage.
Medical/Pharmaceutical:
Disinfectant alcohol storage (USP <797> compliant).
Bioreactor nutrient liquid containment.
Marine/Industrial:
Yacht diesel tanks.
Hydraulic oil reserves for CNC machines.
