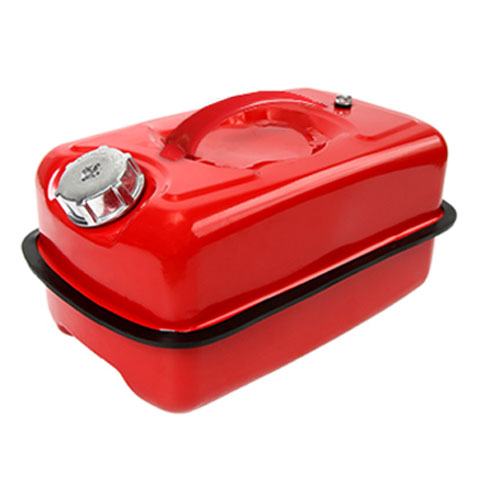

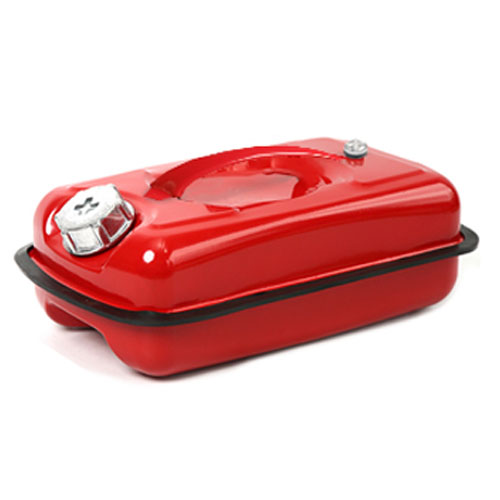

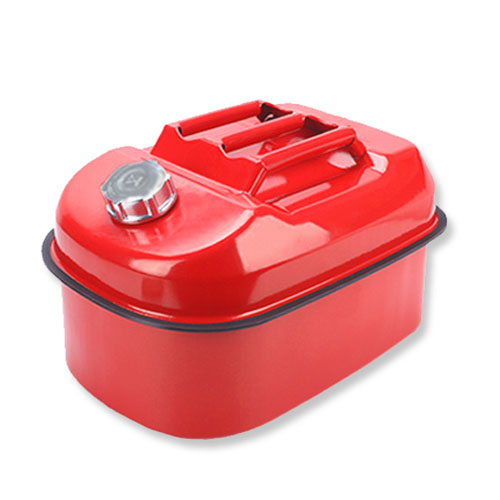

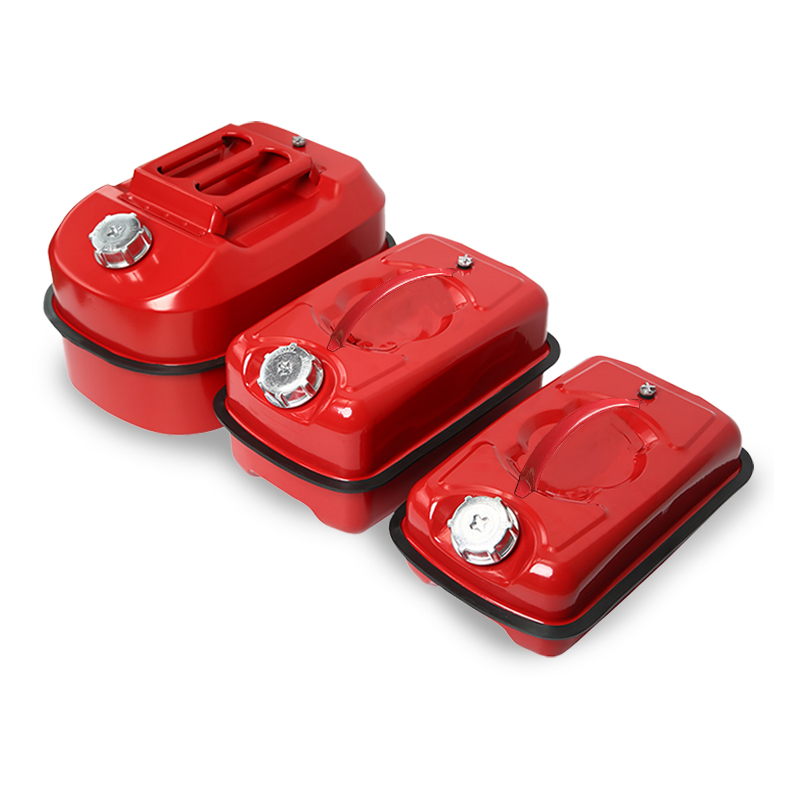

Horizontal Jerry can
Horizontal Fuel Containers 5L/10L/20L | ColdRolled Steel for Russia & Japan | AntiRust Epoxy Coating
Lowprofile horizontal jerry cans with reinforced welded seams, optimized for arctic and marine environments. Available in 5L/10L (0.6mm) and 20L (0.7mm) coldrolled steel. Exportready 5ply cartons with Cyrillic/Japanese labeling. Ideal for Siberian trucks, Japanese fishing vessels, and industrial fuel storage.
Technical Specifications
Parameter | 5L | 10L | 20L |
Capacity | 5L ±2% | 10L ±2% | 20L ±2% |
Material Thickness | 0.6mm coldrolled steel (DC03) | 0.7mm coldrolled steel (DC03) | |
Overall dimension | 410*240*165mm | 410*240*215mm | 410*290*260mm |
Net weight | 1.7kg | 2kg | 2.5kg |
Dropping test height | 1.2m | ||
Hydraulic test pressure | 190Kpa | ||
Leakproofness test pressure | 20Kpa | ||
Load Capacity | 80kg static | 120kg static | 200kg static |
Packaging | 8 units/carton (16kg gross) | 8 units/carton (18kg gross) | 4 units/carton (12kg gross) |
Arctic-Grade Durability
Operates at 50°C (Russiacompliant) with antifracture welding.
Epoxy + baked paint coating (500h salt spray resistance per JIS Z 2371).
Structural Advantages
Reinforced Corners: 3D lasercut steel plates with 20% thicker edge welding.
Dual-Purpose Ports:
38mm fuel inlet with dust cap.
12mm venting port for pressure equalization.
Winter emergency kits for Siberian road services.
Marine fuel reserves for fishing boats.
Compact fuel storage in delivery vans.
CrossBorder Use:
Crosscountry rally support vehicles.
Customization & Logistics
Language Options:Safety labels.
Express Shipping: Support delivery to Vladivostok/Osaka ports.
