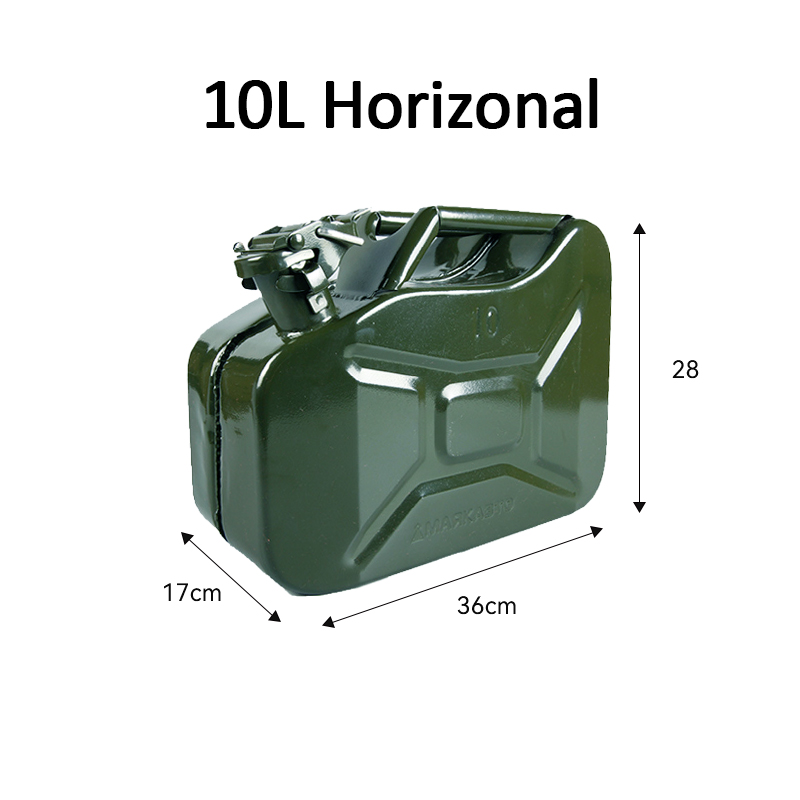

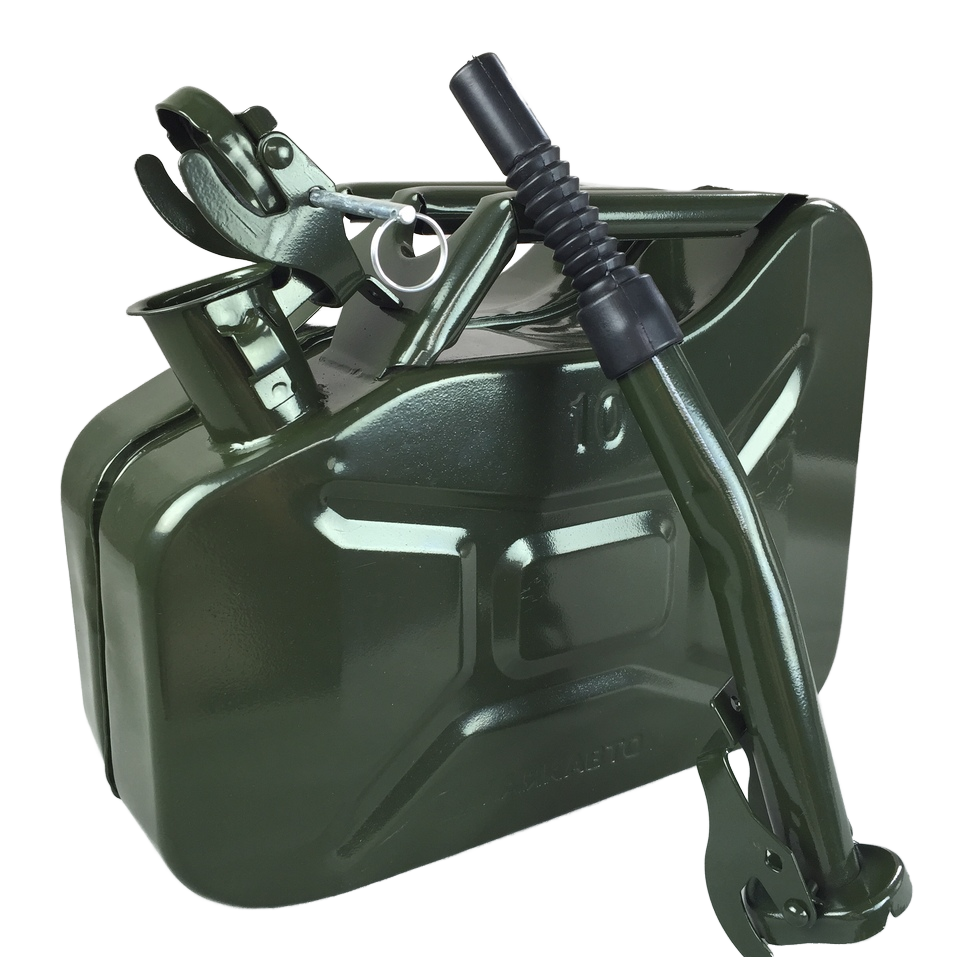

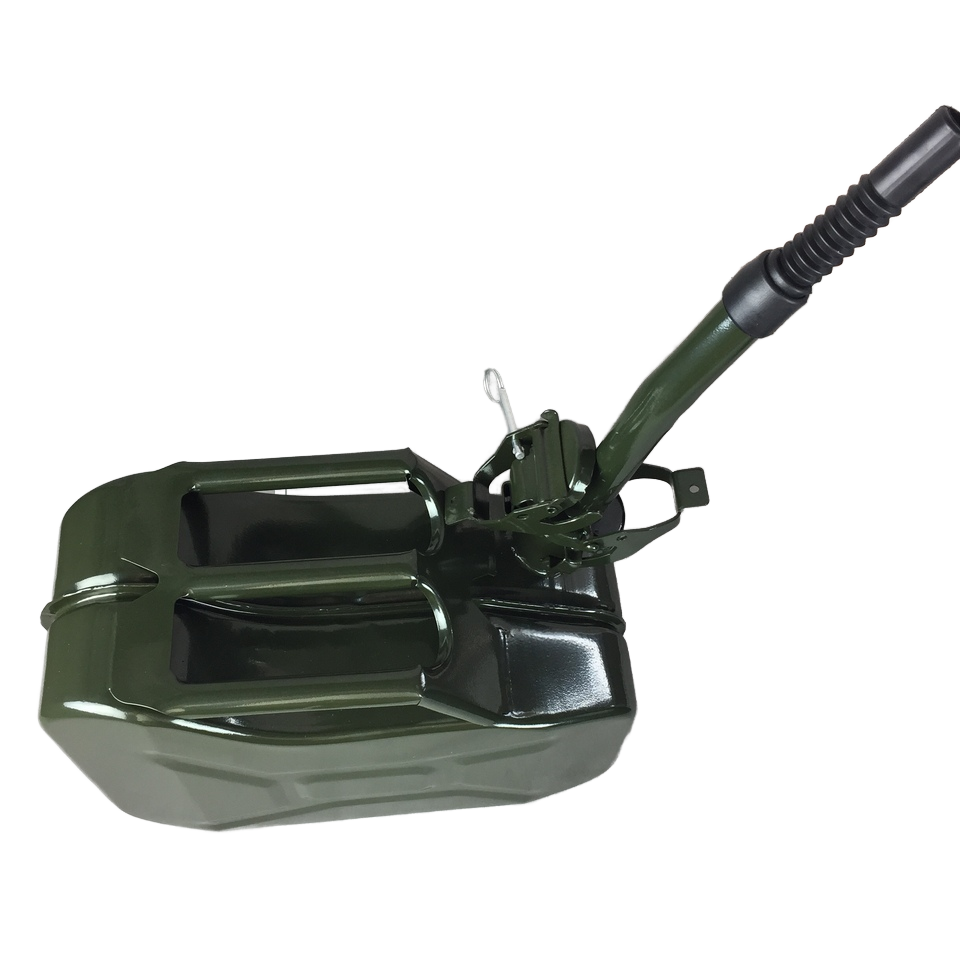

Horizontal type Jerry can 10L
Compact heavy-duty fuel container with squat design (360×270×180mm) for tight storage spaces. Military-grade 0.8mm cold-rolled steel, argon-arc welded seams, and epoxy coating ensure corrosion resistance. Bulk export packaging: 8 units/carton (22kg gross). Ideal for military, off-road, and emergency fuel storage.
Technical Specifications
Parameter | 0.8mm Version |
Capacity | 10L ±2% |
Material Thickness | 0.8mm cold-rolled steel (DC03) |
Overall dimension | 310*130*395mm |
Net weight | 2.45kg |
Coating Process | Electrophoretic epoxy primer + 230°C baked paint |
Dropping test height | 1.2m |
Hydraulic test pressure | 190Kpa |
Leakproofness test pressure | 20Kpa |
Operating Temp | -30℃~120℃ |
Packaging | 8 units/carton (22kg gross) |
Highlights
Space-Saving Design
Ultra-low profile (H: 180mm) fits under truck beds and tight industrial racks.
Stackable with reinforced edges (max. 8 layers).
Leak-Proof Assurance

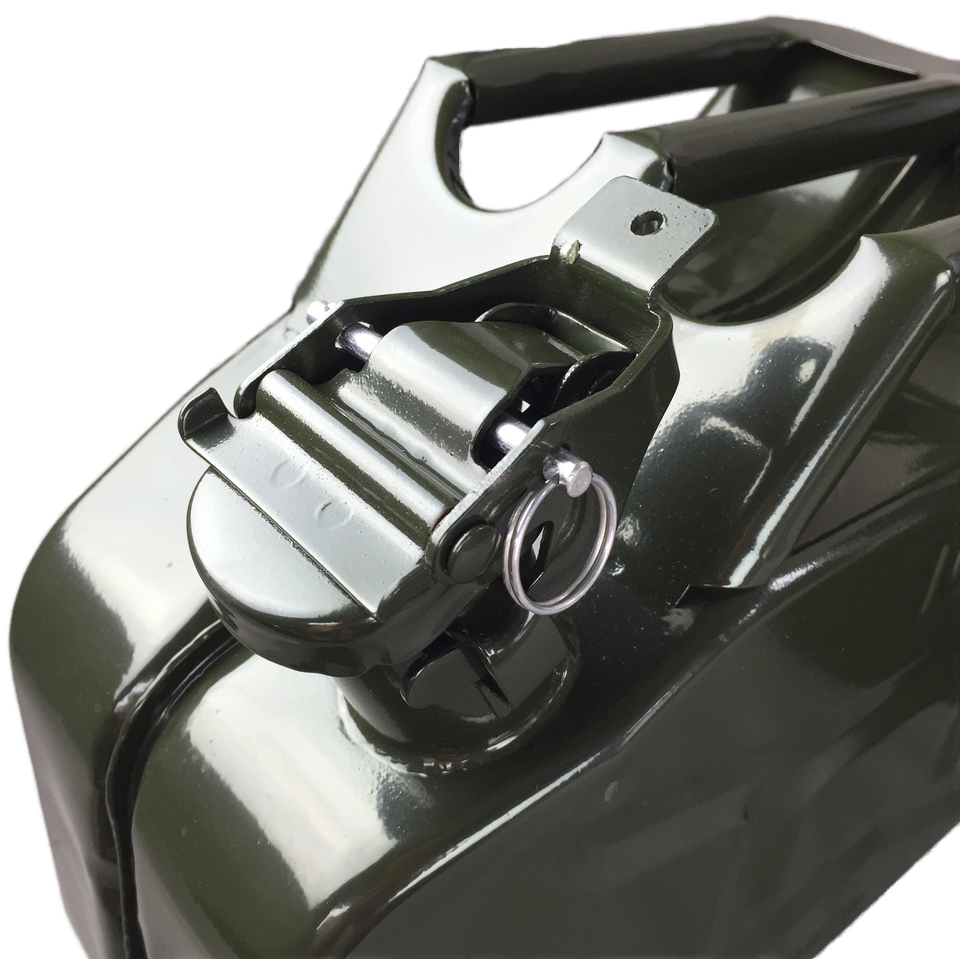

Pressurized spout lid with triple-seal gasket (tested at 0.35MPa).
Argon-arc welded seams (burst pressure ≥0.6MPa).
Extreme Durability
0.8mm cold-rolled steel monoblock stamping (crush resistance ≥500kg).
Epoxy primer + 230°C baked paint (1,200-hour salt spray certified).
Export-Ready Packaging
5-ply corrugated export carton (67×37×54cm).
Moisture-proof inner lining and edge protectors.
Structural Advantages
Monoblock Stamping: Seamless one-piece construction eliminates weak joints, 30% stronger than traditional welding.
Ergonomic Handle: Reinforced grip with textured surface for gloved-hand operation.
NATO-Compatible: Fits standard vehicle mounting brackets (e.g., Humvee, Land Rover).
Industrial:
Generator fuel supply at remote construction sites
Agricultural machinery auxiliary tanks
